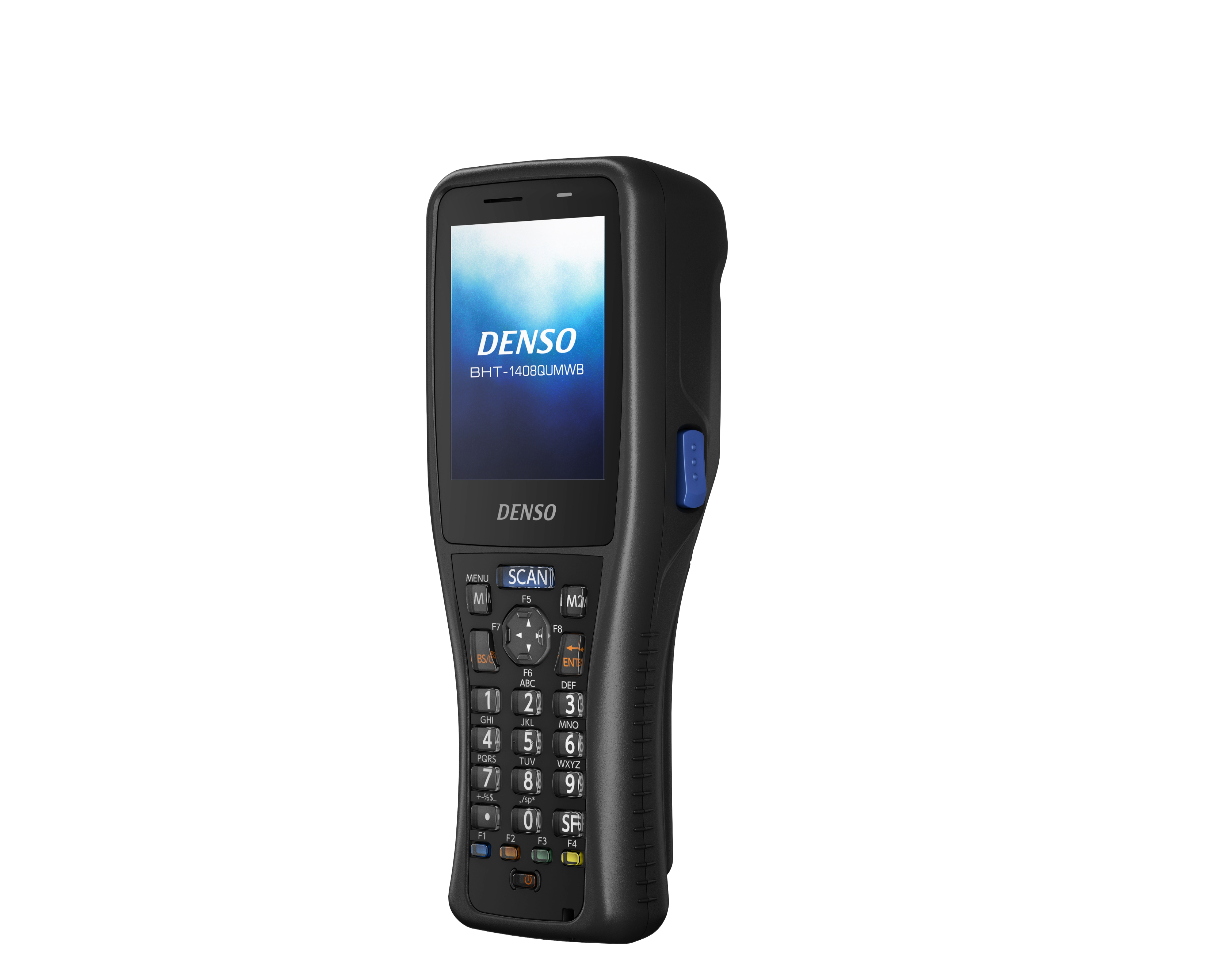

Efficient Task Management: Portable and Easy-to-Use Handheld Terminal
No more carrying multiple devices! Our handheld terminal’s compact design and key-based operation ensure easy portability. Simply take it out from your pocket or case and start working immediately!
Boost Efficiency with Advanced Reading Capabilities
The new AutoLink-Profile reading method provides quick and thorough reads, shortening overall reading time. Achieving up to 700 tags per second, it enhances work efficiency, especially for those needing speed in low-power environments!
All-Day Use: 21 Hours of Continuous Operation
With our unique power-saving design, enjoy up to 21 hours of continuous operation ⁽¹⁾. Perfect for overnight inventory checks and extended fieldwork!
1. When using wireless LAN.
Reliable Durability and Environmental Resistance for Outdoor Use
Designed to withstand daily wear and tear, it passes a 1.2m drop test on concrete 30 times. With IP54 environmental resistance, it can handle outdoor use with exposure to water droplets and dust. Experience the reliability of a professional-grade terminal!
Go Paperless with UHF Electronic Paper Tags (Sold Separately)
Support paperless operations with our UHF battery-free electronic paper tags. Easily rewrite tags even on the go. (Note: Design and rewriting software for electronic paper tags need to be developed separately.)
Reads rMQR Codes®
Equipped to read the new rMQR Codes®, which are designed for narrow and elongated spaces. Increase your usage options!

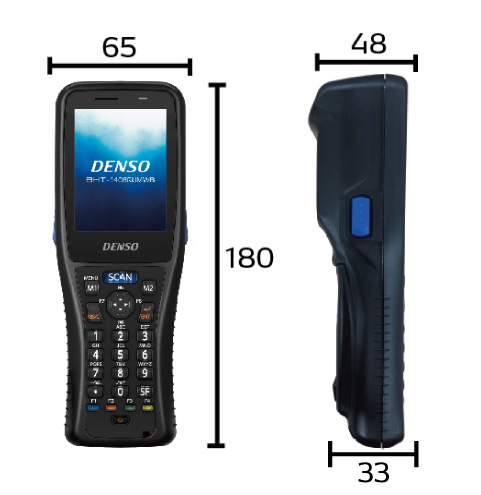

Dimensions
Specifications
| Model | BHT-1408QUMWB | ||
| OS | BHT-OS | ||
| CPU | 32-bit RISC microprocessor | ||
| Memory | 64 MB (user area approx. 27 MB) | ||
| Display | Number of dots | .8 inch QVGA (240 x 320 pixels) | |
| Display element | LCD dot matrix display (color) | ||
| RFID | Readable and writable RF tags | ISO/IEC18000-63 (GS1 EPC Gen2) compliant tags | |
| Read Distance | 0 to 6.5 ft ⁽¹⁾ | ||
| Transmission Output | Less than 500 mW ⁽²⁾ | ||
| Reading Distance | Up to 700 tags/sec ⁽¹⁾ | ||
| Output Adjustment | 20 levels or dBm specification | ||
| Scanner | Method | Area Sensor | |
| Readable Codes | 2D Code | QR Code®, Micro QR Code, SQRC ®, rMQR Code®, PDF417, Micro PDF417, Maxi Code, Data Matrix (ECC200), GS1 Composite | |
| Barcode | EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF), CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 Databar (RSS) | ||
| Minimum resolution | 2D Code | 0.167mm | |
| Barcode | 0.125mm | ||
| Marker | Laser marker (area) | ||
| Read confirmation | Blue, red, green 3-color LED, speaker, vibrator | ||
| Key Entry | Number of Keys | 21 keys + cursor keys + 3 trigger keys | |
| Communications | Wireless LAN ⁽³⁾ | Applicable standards | IEEE802.11a/b/g/n/ac compliant IEEE.802.11ac/a/b/g/n compliant |
| Frequency | 5GHz band (W52, W53, W56) 2.4GHz band (1-13ch) |
||
| Access Method | Infrastructure mode, ad-hoc mode | ||
| Safety features | Infrastructure mode, ad-hoc mode | ||
| Bluetooth® | Bluetooth® | ||
| Power Supply | Main battery | Lithium-ion battery | |
| Operating time ⁽⁴⁾ | Tag reading 2 times/10 seconds | About 28 hours ⁽⁵⁾ | |
| 2 sec/10 sec tag reading | About 16 hours ⁽⁶⁾ | ||
| When using wireless LAN | About 21 hours ⁽⁷⁾ | ||
| When using Bluetooth® | About 16 hours ⁽⁸⁾ | ||
| Card slots | microSDHC x 1 | ||
| Additional features | Clock, speaker, vibrator, battery voltage display, key backlight, remote wake-up | ||
| Environmental performance | Operating Temperature ⁽⁹⁾ | -4°F to 122°F (-20°C to 50°C) | |
| Operating Humidity | 5 to 95% RH (no condensation or freezing) | ||
| Protection rating | IP54 | ||
| Drop resistance | On concrete 4 ft x 30 times | ||
| Weight (including battery) | Approx. 10.58 oz (Approx. 300 g) | ||
|
|||
Optional Accessories
Battery
| Model | Type |
| BT-110L | 3450mAh Lithium-ion |

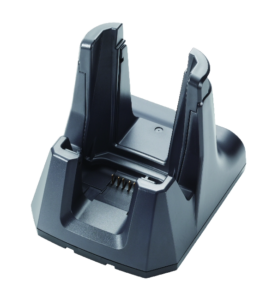

Communication and Charging
| Type | Model | |
 | RS232C type communication unit ⁽¹⁾ | CU-AR1-14-2 ⁽²⁾ |
| LAN type Communication unit ⁽¹⁾ | CU-AL1-14-2 ⁽²⁾ | |
| USB type Communication Unit ⁽¹⁾ | CU-AU1-14-2 ⁽²⁾ | |

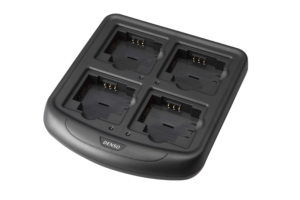

 | 4-port main unit charger ⁽¹⁾ | CH-A4-14-2 ⁽²⁾ |
 | Quad Battery Charger ⁽¹⁾ | CH-1104 |
|
||
Components of a Set
- Terminal
- Hand strap
- Operation manual
- Battery (BT-110L) and Cover
- Battery (BT-110L) and Cover
Development Tools
| Model | Description | Part # | |
| BHT-BASIC4.0 Development Pack | Software tool for developing applications | Good evening! We're doing great | |
| BHT-BASIC4.0 Transfer Utility | Software communication between BHT and PC | SWBHT-BSC4-TRU | |
| BHT-BASIC4.0 Transfer Utility DLL Pack | DLL for communication between BHT and PC | SW-TUDLL5PACK | |
Setup
| Model | Description | Part # | |
| Active USB-COM Port Driver | USB-COM port driver | Free download | |
| BHT Setting | Software that performs settings and application installation for BHT on a PC. | Free download | |
All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
