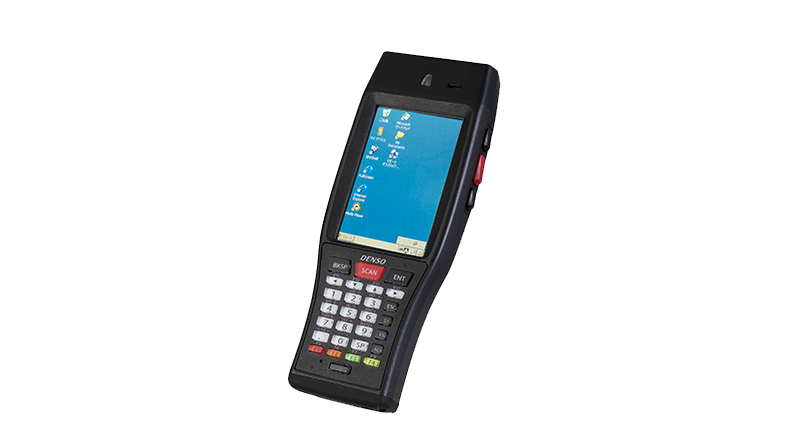

BHT-1200 Series

Hand-Held Android Terminal

Increase business efficiency. Expand functionality. Global model with high specifications

  • Easy to operate
  • Strengthen the advantages of PDA and make up for the weaknesses

Easy to operate with a slim-shape that fits easily in your hands

Simple to operate with only one hand, even with just your thumbs

Keys are placed and arranged to enable one-handed operation

The big screen allows you to see the information easily at a glance

3Display screen with 3.5 inch high-precision HVGA clearly shows even small-sized characters

Easy, Stable Grip

About the size of a smartphone (57mm) and with a slim-shape that fits easily in your hands. Stable to use, by holding the handle in one hand.

12 functional keys

Set up frequently used functions with sufficient numbers of functional keys. You can use the product in a dark place, thanks to the key back light.

The stability and speed required for business-use

  • Fast wireless communication
  • Avoid delays caused by congestion

Security

Prevent unauthorized access and wiretapping.

Embedded with WPA/WPA2, highly reliable security technique, together with WEP

The stability and speed required for business-use

  • Fast wireless communication
  • Avoid delays caused by congestion

5.0 megapixel-level digital camera

Double-functional product with 5.0 megapixel-level digital camera function. Convenient auto-focus and built-in mini size light



Increase business efficiency with overwhelming scanning performance.

Overwhelming speed! Strong on decoding even over long distances away.

Read not only codes nearby, but also codes placed about 1,300mm away. Easy to decode codes placed from floor to shelf in a same position.

Global Support System

Available in more than 40 countries across the world! Total support system.

DENSO group operates globally, providing prompt support across a full range of services, from sales to maintenance. Language options allow you to change the language being displayed.

Countries where BHT-1200 is used:

Japan, EU(27 countries), USA, Canada, Taiwan, Korea, Australia, New Zealand, Thailand, Malaysia, Indonesia, Philippines, Hong Kong, China, Russia, Brazil

Support an integrated management tool with the world’s largest market share. Drastically reduce the cost and effort required for application updates.

BHT-1200 supports MobiControl(1)(2), an integrated management tool for terminals. Regardless of whether it is used in Japan or overseas, the terminal is managed by the management server, resulting in a reduction in the cost and effort required to run it, and meaning it runs seamlessly, saving you stress



Dimensions

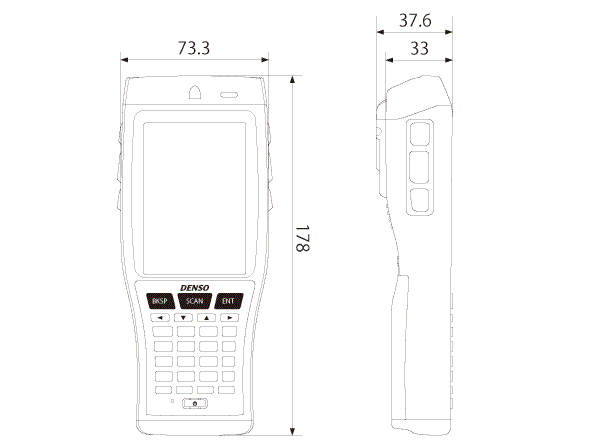

BHT-1261BWB-CE

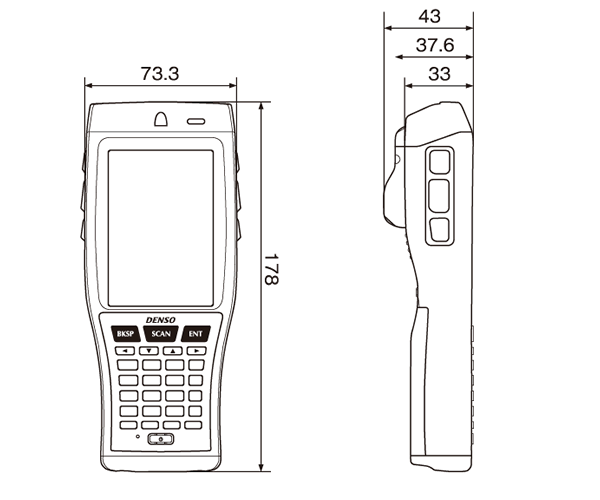

BHT-1261QWB-CE dimensions

BHT-1261QWB-CE

Specifications

Model NumberBHT-1261BWB-CEBHT-1261QWB-CEBHT-1261QWBG-CE
Built-in microphone receiverBuilt-in microphone receiverBuilt-in microphone receiver and WWAN/GPS

System

Operating SystemWindows Embedded CE6.0 R3
CPUARM Cortex-A8 800MHz
RAMMobile DDR 512MB
Flash ROM2.0GB

Display

Resolution (1)3.5 in. HVGA (320 x 480 px)
DisplayLCD
BacklightWhite LED

Scanner

Camera5.0MP automatic focus
Card SlotmicroSDHC
MethodAdvanced scan plus (CCD)Area Sensor
Readable 1D BarcodesEAN-13/8 (JAN-13/-8) UPC-A/-E, UPC/EAN (Add-on embedded), Interleaved 2 of 5, Standard 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), MSl, GS1 DataBar (RSS)EAN-13/-8 (JAN-13/-8), UPC-A/-E, UPC/EAN (Add-on embedded), Interleaved 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Readable 2D BarcodesQR code, micro QR code, SQRC, iQR, PDF417, micro PDF417, Maxi code, DataMatrix (ECC200), Aztec, GS1 DataBar Composite (EAN.UCC Composite)
Minimum Resolution 1D Barcodes0.125mm
Minimum Resolution 2D Barcodes0.167mm
MarkerArea Guide Marker
Scan ConfirmationLED Light (blue, green and red), Sound and Vibration
Keypad30 keys (excluding the power key) + 3 trigger keys

Wireless LAN Communication

StandardIEEE802.11b/g/n Compliant
Frequency2.4GHz
Communication Distance (2)Indoor: 150m, Outdoor: 300m
Transmission Speed (2)IEEE802.11b:11/5.5/2/1Mbps, IEEE802.11g:54/48/36/24/18/12/9/6Mbps, IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps
SecurityWEP40, 128, WPA-PSK (TKIP, AES), WPA2-PSK (TKIP, AES), WPA-1x (TKIP, AES/EAP-TLS, PEAP), WPA2-1x (TKIP, AES/EAP-TLS, PEAP), 802.1x (EAP-TLS, PEAP)
Bluetooth CommunicaitonBluetooth Ver2.0 + EDR Class 2
Cradle I/FRS-232C / USB client
Wireless WANHSPA+ (850, 900, 2100MHz)
GPSA-GPS

Power

Main BatteryLithium-ion Battery
Operating Time (3)Approx. 23 hours (standard battery)
Approx. 34 hours (high-capacity battery)
Operating Time WLAN (3)Approx. 22 hours (standard battery)
Approx. 33 hours (high-capacity battery)
Approx. 18 hours (standard battery)
Approx. 26 hours (high-capacity battery)
Operating Time WWAM (4)Approx. 8 hours (standard battery)
Approx. 12 hours (high-capacity battery)

Operating Environment

IP RatingIP54
Temperature Range (4)-20 to 50°C
Drop Test (5)0.2m × 1,000 or more times / 6 faces, each of 5 concrete floor from 1.5m (30 times total)

Physical Characteristics

Weight (with battery, stylus pen and handstrap)Approx. 330gApprox. 340gApprox. 370g
Additional FeaturesClock, Speaker, Battery Voltage Indicator, Key Backlight, G-Sensor, Microphone Receiver


(1) Properly operating pixel rate is 99.99%.
(2) The communication distance shown is a reference value. It may vary depending on the actual environmental conditions.
The transmission speed shown is a logical variable only, not the guaranteed value.
(3) At the ratio of scanning: wireless transmission: screen transition:stand-by=1:1:1:20, wireless stand-by (power save on), and LCD backlight low.
Featured values are for reference at room temperature, and actual operating hours may vary according to the usage environment.
(4) Zero to 40°C when charging.
(5) Result obtained in a test under regular temperature is shown and not meant as a guarantee.
(6) Zero to 40°C when batteries are being recharged.
(7) Result obtained in a test under regular temperature is shown and not meant as a guarantee.
**All specifications subject to change without notice.

Optional Accessories – Sold Separately

Communication/charging

  • Cradles performing data communications between BHT and higher rank units.
    • USB/RS-232C communication
    • Main unit charging
    • Reserve battery charging
  • CU-1211
    • Ethernet communication
    • Main unit charging
    • Reserve battery charging

Power supply

  • Batteries for BHT-1200
    • Lithium-ion battery (standard battery only)
  • BT-120LA-C
    • Lithium-ion battery (standard battery + battery cover)
  • BT-110L
    • Lithium-ion battery (high-capacity battery only)
  • BT-120L-C
    • Lithium-ion battery (high-capacity battery + battery cover)

Soft case and others

  • SCBHT-1200
    • Soft case
  • WHBHT-1100/1200
    • Waist-pack case
  • SBBHT-700
    • Shoulder-belt

Accessories

  • Hand-belt
  • Stylus pen
  • Operation guide

*Battery and battery cover are not supplied with the product

Related Software


Software

Description
Description
Version Manager for Windows BHTClient Software to manage OS and application Version. One (1) license required by each BHT.SWBHT-VERMGR-W7
BHT-Windows SimulatorSoftware to support program development and debug using virtual BHT running on the PC. One (1) license required by PC. SWBHT-WINSIM
SDK Windows CE 6.0 Software Development Kit (SDK) for Windows CE 6.0Free Download
SDK Windows Embedded 7 CompactSoftware Development Kit (SDK) for Windows Embedded Compact 7Free download
BHT-DMS LiteDevice Management Software Lite Version. One license per PC.SW-BHTDMS-LITE
BHT-DMS StandardDevice Management Software Standard Version. One License per PC.SW-BHTDMS-STRD

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
