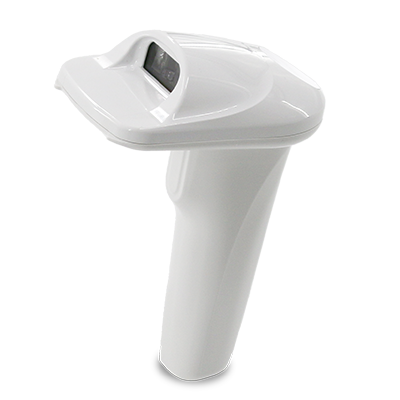

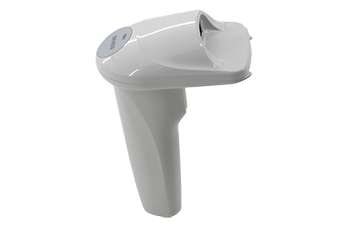

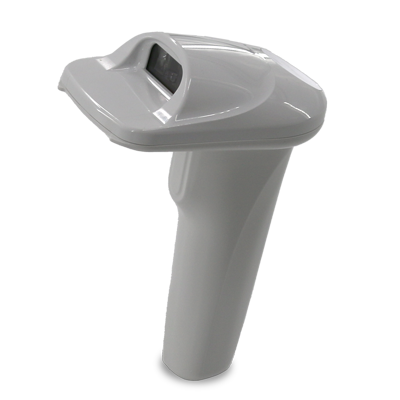

SC1-QB Healthcare Scanner
Unmatched in the Industry. The all-new SC1-QB brings a needed breakthrough for health care settings. The smooth surface is designed for ease of wipe-down and will withstand rigorous anti-bacterial cleaning. Lightweight, quick-charging, and powerful, it offers superior performance in any clinical or office setting as well as in restaurants, retail, and other shared environments.
Key Performance Benefits
Smooth, Seamless, Sanitary.
Say goodbye to crevices, cracks, and screw holes where microbes and pathogens can hide. The smooth surface of the SC1-QB is easy to clean, ideal for day-in-day-out use with chemical disinfectants common to healthcare settings.
Featherweight Ease.
At only 4.5 ounces, the SC1-QB is pleasantly lightweight. Ergonomic contours and a pressure-sensitive (piezoelectric) trigger make scanning a breeze.
Wireless Charging in 3 Minutes or Less.

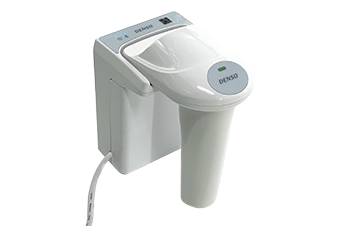

Simply set the SC1-QB on its compact, magnetic charging cradle. The scanner’s internal capacitor will fully charge in just three minutes or less—eliminating needless downtime. Need to complete quick work on low power? Get dozens of scans after only 60 seconds of charging. What’s more, the internally capacitor never needs replacement, unlike traditional batteries.
IP65 Rated Protection.
The SC1-QB scanner is highly resistant to dust and water intrusion, making it a reliable accessory in varying environments and room conditions.
Durable and Dependable.
The SC1-QB is made to withstand the rigors typical of daily use, tested in multiple drops from heights up to 6 feet.
Advanced Performance.
Equipped with latest in code-reading technology from DENSO, the SC1-QB ensures swift, accurate data capture, scan after scan after scan. Never worry about cables getting tangled with wireless scanning. SC1-QB comes enabled with Bluetooth 5 (BLE) for added wireless functionality.
Dimensions
Specifications
| Model Number | SC1-QB |
Scanner |
|
| Method | Area Scanner |
| Readable 2D Codes | QR Code, SQRC, Micro QR Code, DataMatrix (ECC200), PDF417, MicroPDF417, MaxiCode, Aztec, GS1 Composite |
| Readable 1D Barcodes | EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5, Standard 2 of 5, Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS), ISBT128 |
| Minimum Resolution 2D Codes | 0.127mm |
| Minimum Resolution 1D Barcodes | 0.076mm |
| PCS Value | More than 0.3 |
| Targeting Marker | LED |
| Angle | ±50° |
| Skew Angle | 360° |
| Scanning Confirmation | LED Light (blue, green and red) and Sound and Vibration |
Communication |
|
| Standard Method | Bluetooth 5.0 Low Energy Based Class 2 (compatible with Android, iOS and Windows devices with HID Over GATT Profile (HOGP) |
Power |
|
| Power Supply | Capacitor Battery (Wireless charging on base, sold separately) |
| Charging Time | Approx. 3 minutes |
| Operating Time | Approx. 30 minutes (1 scan per 5 sec) |
Operating Environment |
|
| IP Rating | IP65 |
| Temperature | -20 to 50°C |
| Humidity | 10 to 90% RH (non-condensing) |
| Illuminance | Under 10,000 lux (daylight fluorescent lamp) |
| Drop Test | 2.0m (onto concrete floor) / 0.5m x 2,000 times |
Physical Characteristics |
|
| Weight | Approx. 130g |
**All specifications subject to change without notice. | |
Charging Stand Specifications
| Model Number | CH-SC1W |
Scanner |
|
| Notification | LED Light (blue, green and red) |
| Communications Interfaces with Windows PC | USB 2.0, USB-HID keyboard interface / USB-COM interface |
Power |
|
| Power Supply | USB Charging (DC 5V) |
| Battery | Two AA rechargeable batteries (Tested for specifications with Eneloop brand 1900mAh batteries.) |
Operating Environment |
|
| IP Rating | IP22 |
| Temperature | 0 to 40°C |
| Humidity | 20 to 80% RH (non-condensing) |
Physical Characteristics |
|
| Weight | Approx. 125g without battery |
**All specifications subject to change without notice. | |
Optional Accessories – Sold Separately
CONTENT COMING SOON
Related Software
CONTENT COMING SOON
All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
