Stationary Scanner QK30

Designed to read both barcodes and 2D codes, as well as capture images, the FC1-QOPU scanner delivers quick and secure passport scanning. Nearly the size of an opened passport, FC1 is among the smallest in the industry and compact enough to be used as either a desktop reader or incorporated into a kiosk terminal.

Key Benefits


Convenient Passport Scanning

Display reads both text and images all at once, making passport scanning quick and easy. This simplifies set-up and operation for beginners and is ideal for hotel check-in.


Versatile Scanning Performance

FC1-QOPU offers a wide range of scanning capability, reading both printed barcodes and QR Codes as well as on digital displays.



Scanning display is nearly equal to an opened passport page and also uses a USB connection for charging, making for effective use on self check-in kiosk terminals and countertops.


Ready for Easy Set-up

The Scanner Setting OCR tool allows users to adjust volume settings and select QR code types. Users can quickly and easily set up multiple FC1 units using a QR Code configured with standardized settings.

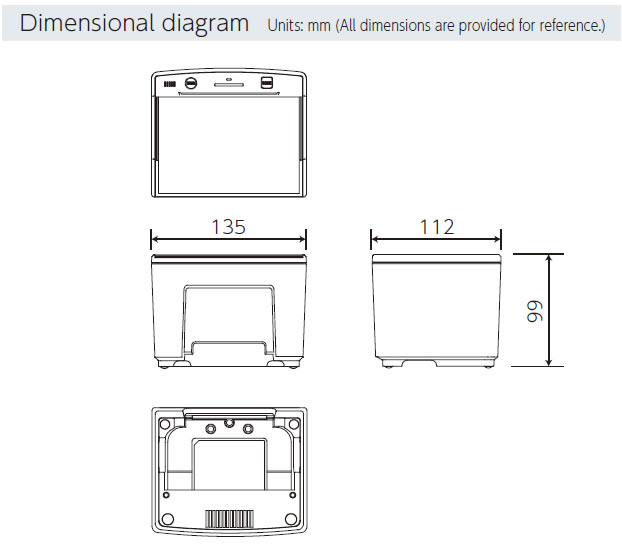

FC1 Dimensions


Model NumberFC1-QOPU


Readable OCRMachine-readable passports (MRP) conforming to ICAO recommendation Doc 9303 Part 1 Volume 1 (passport OCR 44 characters × 2 lines), Machine-readable visa format A(MRV-A) conforming to ICAO recommendation Doc 9303 Part 2 (full-size visa OCR 44 characters × 2 lines)
Readable 2D CodesQR codes, micro QR codes, SQRC, PDF417, micro PDF, Aztec, GS1 Composite
Readable 1D BarcodesEAN-13/-8 (JAN-13/-8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF), CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Minimum Resolution 2D Codes0.25mm
Minimum Resolution 1D Barcodes0.18mm
Field of View85mm x 55mm
DistanceApprox. 0mm - 5mm (1)
ConfirmationBlue LED + Sound

Communication Interface

InterfaceUSB 2.0 compliant, USB-COM, HID (2)
ConnectorUSB Mini-B connector
CableOptional Accessory


SupplyPower supplied from connected device (3)

Operating Environment

IP RatingIPX2
Temperature Range0° to 50°C
Humidity10 to 90% RH (non-condensing, non-freezing)


Dimensions135mm x 112mm x 99mm
WeightApprox. 315g (without cable)

(1) Height above dust protection plate when scanning OCR-B font text, barcodes, and 2D codes.
(2) Supports USB keyboard interface and USB-COM interface. The USB driver must be downloaded (free of charge) from the DENSO Wave website before use in USB-COM interface mode.
(3) Connections may not be possible with some PCs or USB hubs. Check the connection before using.

**All specifications subject to change without notice.

Related Software


Part #
Active USB-COM Port DriverUSB DriverFree Download from DENSO WAVE
Scanner Setting OCRSet Up SoftwareFree download
SQRC SettingSQRC Scanning Set Up SoftwareFree Download from DENSO WAVE
QRkbifKeyboard Emulation SoftwareFree Download from DENSO WAVE

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
