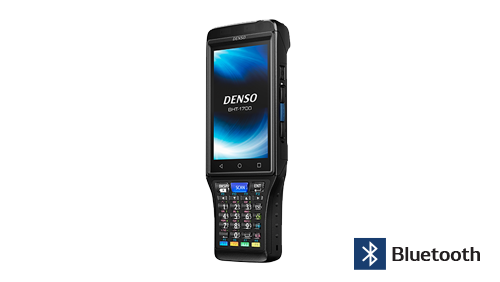

BHT-1700 Android Terminal

BHT-1700 Android Terminal

This Android terminal boasts a numeric keypad for user-friendly, one-handed operability, making it a first choice for applications in warehousing and manufacturing and a proven performer in retail and logistics settings as well as for events. It comes with a free, three-year warranty upon product registration.

Powerful Features

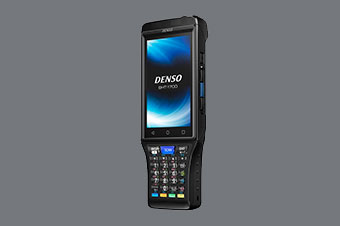

Efficiency and Value

Efficiency and Value

The combination of Android®, 4G LTE, and Google Mobile Service integrated with powerful software applications greatly expands capabilities and efficiency.

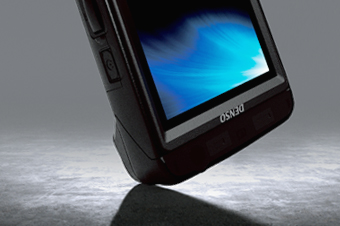

Robust and Stylish

Robust and Stylish

The BHT-1700 is lightweight, attractive, and strong, made of magnesium alloy and durable polycarbonate. Tests show it withstands drops from a height of 2.5 meters (8.2 feet).

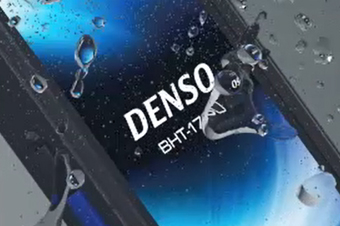

Good in Harsh Environments

Good in Harsh Environments

Advanced sealing technology provides IP67 rated protection against dust and water droplets to ensure proper functioning despite adverse conditions.

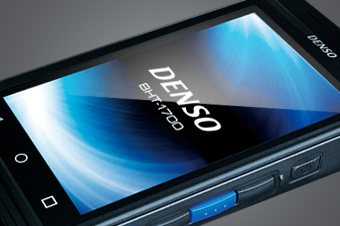

Large, Scratch-Resistant Display

Large, Scratch-Resistant Display

A tempered glass panel protects the 4-inch, high-definition display from pressure and helps prevent damage from drops and impacts.

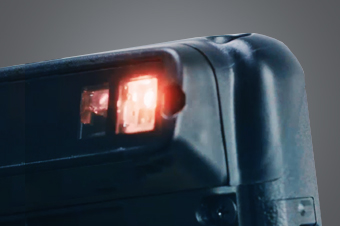

Superior Reading

Superior Reading

A powerful reading module captures codes (distance of 35 millimeters or 1.4 inches) and does not make mistakes. Even if codes are stained, blurred or distorted it reads them instantly—no repeated scanning necessary.

Two CPUs

Two CPUs

In addition to a quad-core CPU for running application software, an exclusive, terminal-mounted CPU performs reading and decoding. So you can run multiple high-load applications on the terminal while the scanner reads codes swiftly and smoothly.

Long-Range Scanning

Long-Range Scanning

With a scanning distance of 10 meters (32 feet) even forklift operators can easily can items on shelves. Four lamps (conventional products have only two) make for successful scanning even in dim or poorly lit areas.

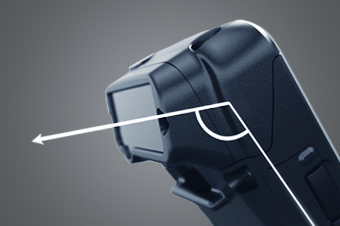

A Good Angle

A Good Angle

DENSO’s technology developed the uniquely angled scan head to optimize code capture, which the user can see on the terminal screen while scanning.

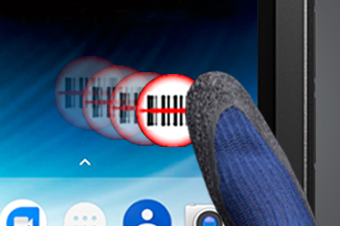

Custom One-Touch Functions

Custom One-Touch Functions

In addition to the trigger key, multiple magic keys let you assign frequently used function for one-tap touch control. And you can move the “touch trigger” to any location on the screen you like.

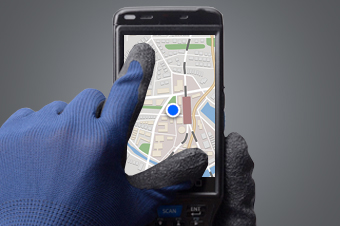

Gloved Operation

Gloved Operation

With DENSO’s technology for superior touch sensitivity, you can even operate the panel while wearing gloves—useful in cold or damp environments.

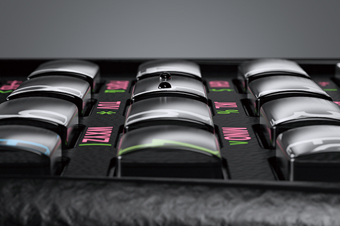

One-Handed Operation

One-Handed Operation

Frequently used buttons are within easy reach of the thumb, and users can press buttons precisely, even with gloves on.

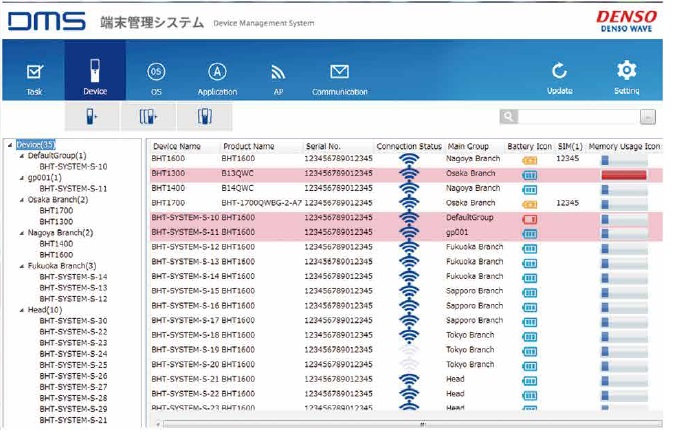

Centralized Management

Centralized Management

The BHT DMS (Device Management System) manages the terminal, updates the application software and OS, transmits master and other files and others and collects result files. Central management via the network makes life simpler for system administrators.

Dimensions

dimensions

Specifications

Model NumberBHT-1700QWB-1BHT-1700QWB-2BHT-1700QWBG-1BHT-1700QWBG-2BHT-1700QLWB-PBHT-1700BWB-1
Wireless LANWireless LAN + Wireless WANWireless LAN
2D Code Model2D Code Long ModelBarcode Model

System

Operating SystemAndroid TM 7.1.2
CPU1.3GHz Quad-core
RAM2GB
Flash Memory16GB
Memory125 GB Micro SDHC/SDXC
SIMTwo (2) Nano SIM

Display

Resolution (1)4.0 in. WVGA (480 x 800 px)
Display SystemColor LCD
BacklightWhite LED
TouchscreenDragontrail® PRO

Scanner

MethodArea SensorAuto Focus Area SensorAdvance Scan Plus (CCD)
Readable 2D CodesQR Code, Micro QR Code, SQRC, iQR Code, PDF417, Micro PDF417, MaxiCode, DataMatrix (ECC200), GS1 CompositeQR Code, PDF417, Micro PDF417, MaxiCode, DataMatrix, (ECC200), GS1 Composite
Readable 1D BarcodesEAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF), Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Minimum Resolution 2D Codes0.167mm0.167mm0.167mm0.25mm0.25mm
Minimum Resolution 1D Barcodes0.125mm0.125mm0.125mm0.15mm0.15mm0.125mm
MarkerArea Guide
Scanning ConfirmationLED Light (blue), Sound and Vibration
Keypad (including power key)31 keys + 3 trigger keys31 keys + 3 trigger keys31 keys + 3 trigger keys31 keys + 4 trigger keys31 keys + 4 trigger keys31 keys + 3 trigger keys
Camera8MP Auto Focus8MP Auto Focus

Network

Wireless LAN Compatible Standards (2)IEEE802.11a/b/g/n compliant
Wireless LAN Frequency Band (2)IEEE802.11a/n:5.2GHz, 5.3GHz, 5.6GHz, IEEE802.11b/g/n:2.4GHz
Wireless LAN (3) Transmission Distance (2, 3)IEEE802.11a: Indoors = approx. 50m, IEEE802.11b/g/n: Indoors = approx. 75m, Outdoors = approx. 200m
Wireless LAN SecurityEncryption: WEP(40/128)/TKIP/AES WPA authentication: WPA/WPA2 User authentication: PSK/EAP-TLS/PEAP
Wireless WAN Compatible Standards4G LTE/3G/GSM, VoLTE
GPSA-GPS/GLONASS
BluetoothBluetooth®Ver4.1+EDR/LE (Compatible Authentication Profile: GAP/SDAP/HSP/SPP/GOEP/OPP/HFP (AG1.5)/PAN/A2DP/AVRCP/GAVDP/HID/PBAP/HOGP/MAP/GATT)
NFC (7)YesYes

Power

Main BatteryLithium-ion Battery
Operating Time Standard Battery (4)28 hours (5)26 hours (6)30 hours34 hours (5)
Operating Time High-capacity Battery (4)42 hours (5)39 hours (6)45 hours51 hours (5)

Operating Environment

IP RatingIP67
Temperature Range (8)-20 to 50°C
Drop Test (9)1.5m x 60 times or more, 2.5m1.2m x 60 times or more, 2m1.5m × 60 times or more, 2.5m

Physical Characteristics

Weight (including battery)Approx. 308gApprox. 438gApprox. 298g


(1) Properly operating pixel rate is 99.99%
(2) IEEE802.11a:5.2GHz( W52), 5.3GHz (W53) are for indoor use only
(3) The communication distance shown is a reference value, and it may vary accordingly, depending on the actual environmental conditions. The transmission speed shown is a logical variable only, not the guaranteed value.
(4) The described operating time is reference figure under regular temperatures and may very depending on usage conditions.
(5) Scanning to wireless communication to screen update to standby = 1:5:1:60. Vibration and sound are disabled.The wireless function is always enabled, and all other functions are disabled.
(6) Scanning to scan update to standby = 1:30:270. Data is transmitted via a wireless WAN while the screen is displayed.
(7) The NFC function needs to be well tested for readability by using the card that you will actually use
(8) Zero to 40°C when batteries are recharging
(9) Results obtained in a test done at room temperature. They are not meant to be guaranteed values.

**All specifications subject to change without notice.

Optional Accessories – Sold Separately


Batteries and Accessories

Part #
High-capacity Battery3,450mAhBT-110L
High-capacity Battery and Door/CoverBundled BT-110L high-capacity battery (3,450mAh) and door/coverBT-170L-C
Large Battery CoverBCBHT-170L
Standard Battery2,300mAh BT-110LA
Standard Battery and Door/CoverBundled BT-110LA battery (2,300mAh) and door/coverBT-170LA-C
Standard Battery CoverBCBHT-170LA

Charging Station

AC AdapterOutput: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For Brazil and Europe.AD3-3012/3000
AC AdapterOutput: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico.AD3-2012/300002
Four-slot Cradle Charger*Charge up to four terminals at the same time. AC adapter not included.CH-B4-17
Four-slot External Battery Charger*To charge BT-110LA, BT-110L, BT-130LA or BT-20LB batteries. Charge up to four batteries at the same time. AC adapter not included.CH-1104

Communication Station

AC AdapterOutput: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For Brazil and Europe.AD3-3012/3000
AC AdapterOutput: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico.AD3-2012/300002
CableStraight 14m USB cable. Type A Male - micro B MaleCB00-US1/4A-4MB
CableStraight 15m USB cable. Type A Male - micro B MaleCB00US15/4A-5MB
Direct Connect CableFor the communication between the unit and PC. USB cable: Type A Male - BHT-1700 connectorCB-1700-DCUSBAN
Single-slot Ethernet Cradle*For BHT-1700 with additional battery charging slot. For communication and battery charging. To charge BT-110LA and BT-110L batteries. Ethernet cable and AC adapter not included.CU-BL1-17
Single-slot USB Cradle*For BHT-1700 with additional battery charging slot. For communication and battery charging. To charge BT-110LA and BT-110L batteries. USB Type A - Micro B Cable and AC adapter not included.CU-BU1-17

Other Accessories

Hand Strap - BlackHS-DENSOBLK
Stylus PenPNBHT-1700

Related Software


Software

Description
Part #
BHT-DMS LiteDevice Management Software Lite Version. One license per PC.SW-BHTDMS-LITE
BHT-DMS StandardDevice Management Software Standard Version. One License per PC.SW-BHTDMS-STRD
SDK AndroidSoftware Development Kit (SDK) for Android 7.1.2Free download

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
