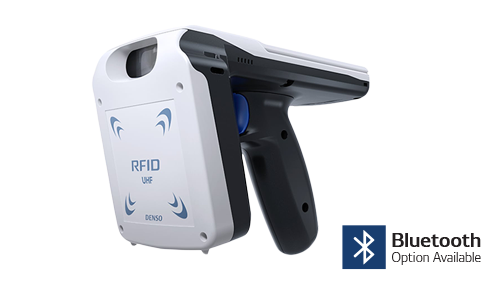

SP1 RFID Scanner

SP1 Bluetooth Option Available

This high-power, RFID scanner brings ease of use with blazing speed. Ideal for inventory-taking in retail and healthcare settings, as well as in applications for transportation, warehousing and logistics.

Superior Features

Foolproof and Fast

Performs 700 scans per second at distances up to 8 meters, even when tags are facing different directions.

Simple Setup

Setup the device by simply scanning a QR Code. Pair via Bluetooth to any smart device (phone or tablet, iOS, and Android) for quick and easy transitions between tasks.

Automatic Polarization

Proprietary antenna design switches automatically between horizontal and vertical polarization for uninterrupted scanning in any position.

No Data Loss

If pairing disconnects during work, scanned data is temporarily saved and then transmitted when the scanner is reconnected.

Dimensions

SP1 dimensions

Specifications

Model NumberSP1-QUBi

RFID

Supported RF TagsISO/IEC 18000-63 Type C (EPCglobal Class 1 Gen 2)-compatible Tag
Frequency Range902.75 - 927.25MHz
Scanning Speed (1)700 scans/second
Scanning Distance (1)Approx. 8m
Internal Memory Capacity80,000 RFID Tags
Output Adjustment10 to 30dBm

Scanner

MethodArea Sensor
Readable 2D CodesQR code, Micro QR Code, SQRC, PDF417, Micro PDF417, MaxiCode, DataMatrix (ECC200), GS1 DataBar Composite (EAN.UCC Composite)
Readable 1D BarcodesEAN-13/-8 (JAN-13/-8), UPC-A/-E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF), CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Minimum Resolution 2D Codes0.167mm
Minimum Resolution 1D Barcodes0.125mm
PCS Value0.3 or greater
Angle±50°
Scanning ConfirmationLED Light (blue and red) and Sound

Transmitter

BluetoothBluetooth Ver2.1+EDR Standard Class 2
ProfileSPP, SPP (iOS)
CradleUSB

Power

Main BatteryLithium-ion Battery
Operating Time Standard Battery (2)Approx. 4 hours
Operating Time High-capacity Battery (2)Approx. 8 hours

Operating Environment

IP RatingIP54
Temperature Range (3)-20° to 40°C
Drop Test (4)30 drops from 1.2 m onto concrete (5 times on each of 6 faces), 1.5 m

Physical Charateristics

WeightApprox. 400g with standard battery
Approx. 450g with high-capacity battery

Regulation

EMC StandardVCCI Class A


(1) Scanning speeds and read distances are reference values. Actual scanning speeds and read distances may vary. The maximum read range depends on the tag to be scanned. Evaluation condition = Avery Dennison AD-229r6.
(2) These operating times are reference values measured under room temperature and other conditions set by our company. Actual operating times depend on working conditions. Conditions set by our company: Power Save Mode 2, RF Tag Continuous Read Mode 1, LOW buzzer level.
(3) Zero to 40°C while charging.
(4) This is a test value obtained under room temperature conditions. It is not a guaranteed value.

**All specifications subject to change without notice.

Optional Accessories – Sold Separately


Batteries and Accessories

Part #
Large Battery5,800 mAhBT-SP1L
Large Battery with CoverBT-SP1L-C
Standard Battery2,900mAhBT-180LA
Standard Battery and CoverBT-SP1LA-C

Charging Station

AC AdapterOutput: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico.AD3-2012/300002
Four-slot Cradle ChargerCharge up to four units at the same time. AC adapter not included.CH-SP1L4
Four-slot External Battery Charger*To charge BT-180LA or BT-SP1L batteries. Charge up to four batteries at the same time. AC adapter not included.CH-1804

Communication

AC AdapterOutput: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico.AD3-2012/300002
CableStraight 14m USB cable. Type A Male - micro B MaleCB00-US1/4A-4MB
CableStraight 15m USB cable. Type A Male - micro B MaleCB00US15/4A-5MB
Direct Connect CableFor the communication between the unit and PC. USB cable: Type A Male - SP1 connectorCBSP-US2000/4
Direct Connect Cable30cm BHT-1800 Connect 1800 to any USB-A portCB-1800-DCUSSP1
Single-slot USB CradleFor communication and battery charging. Battery BT-118LA and BT-SP1L can be charged. AC adapter not included.CU-SP1A

Communication

Handsfree AttachmentQuadlock Male adapter for SP1 and mobile device with Quadlock adapter. Female Quadlock adapter not included.EA-SP1-AS
Handsfree AttachmentEA-SP1-A1800

Related Software


Software

Description
Part #
SDK AndroidSoftware Development Kit (SDK) for AndroidFree download
SDK iOSSoftware Development Kit (SDK) for iOSFree download
SDK XamarinSoftware Development Kit (SDK) for Xamarin-AndroidFree download

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.

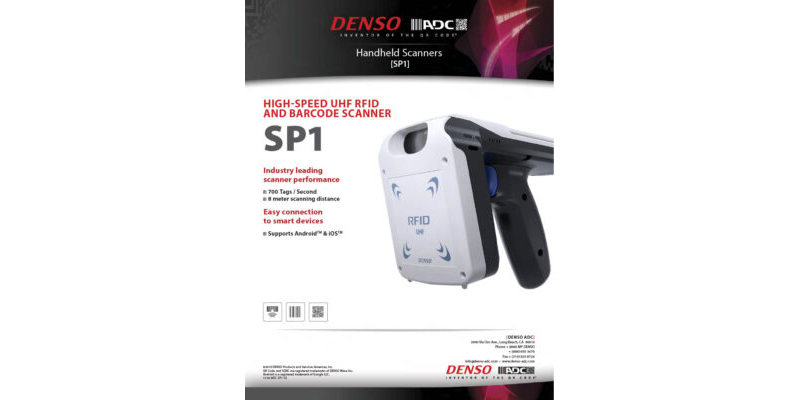

Downloads
