UR21-MS RFID Scanner

UR21-MS scanner

Ultra-thin, stationary scanner that can be installed anywhere. It is especially suited for retail applications.

The antenna and controller are compact and virtually unlimited in where they can be used.

More Productivity

Quicker Checkout, Shorter Lines

No need for manual scanning—RF tags are captured instantly on the counter.

Avoids Catches

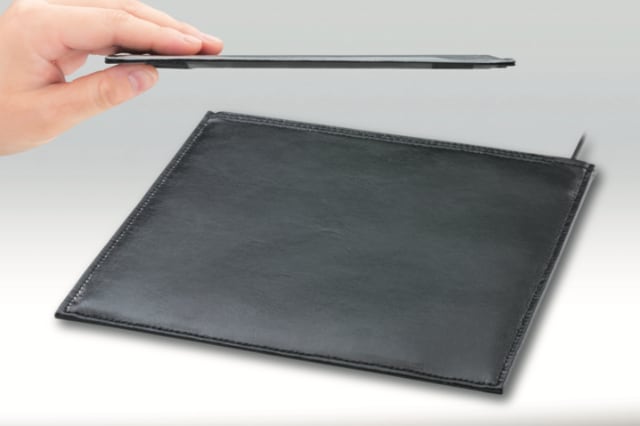

Ultra-thin (5 mm) antenna prevents snags to make scanning efficient and fast.

The Right Range

The communications range (approximately 2.6 feet) is ideal for point-of-sale registers. You can also adjust the range lower to prevent reading products at nearby registers.

External Dimensions

Specifications

Model NumberUR21-MS-01

RFID

Supported RF TagsISO/IEC18000-63 Type C (EPCglobal Class1 Gen2)-supported Tag
Frequency Range915.25 - 927.5 MHz
Signal Bandwidth/No. of Channels250kHz / 50 Channels
Transmission Output21dBm EIRP
Modulation MethodPR-ASK
Transmission Rate40kbps
Scanning Distance (2)0 - 1300 mm (Avery Dennison AD-237r6, AD-229r6)
Output Adjustment5-23 dBm

LED Indicators

Four IndicatorsPower Supply (green), COM (red), ANT1 (orange), ANT2 (orange)

Communications

InterfaceRS-232C (DB9), USB (USB Mini-b)

Power

Power SupplyAC adapter (100 V)
Current Consumption1300 mA max. (excluding inrush current)

Operating Environment

Temperature Range0° to 40°C

Physical Charateristics

DimensionsController: 90 x 108.5 x 31 mm
Antenna: 200 x 200 x 17.5 mm
Weight Controller: Approx. 130g
Antenna: Approx. 250g


(1) Only use specified antennas, controllers and cables.
(2) The communication distance differs depending on the target tag.The communication distance is subject to change depending on the conditions in the actual environment.

**All specifications subject to change without notice.

Optional Accessories – Sold Separately


Communication

Part #
AntennaCoaxial cable not includedURAN-R2
AntennaRFID UHF includes cableURAN-S1
CableStraight 1.5m RS-232C cableCB00RS1500/9901
CableStraight 1.5m USB cable. Type A Male - mini B MaleCB00US15004A4B1
CableStraight 2.0m USB cable. Type A Male - mini B MaleCBBA-US2000/4
Coaxial CableFor URAN-R2CBANCGT272000GT

Power and Charging

AC AdapterOutput: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico.AD2-2005/300003

Related Software


Software

Description
Part #
Active USB-COM Port DriverUSB-COM port driverFree download

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.

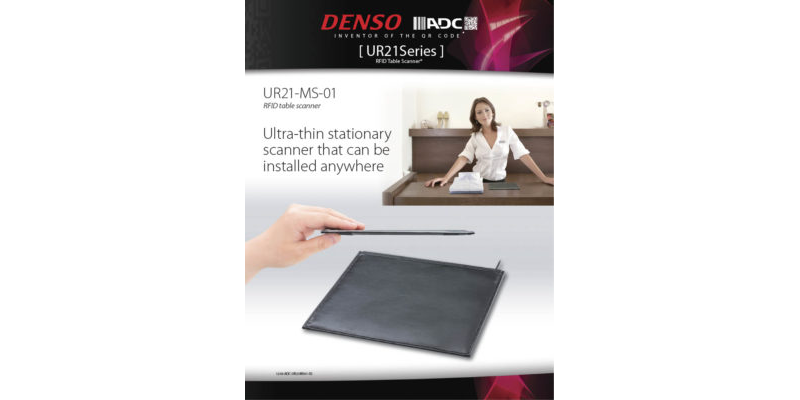

Downloads
