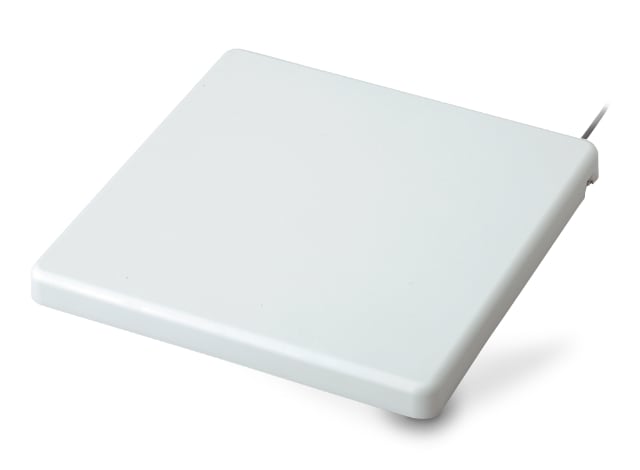

UR21-MR RFID Scanner

UR21-MR

A multi-purpose UHF RFID Scanner with compact design. It is especially suited for retail applications, and it is useful for tracking items in manufacturing and warehousing.

Key Benefits

Counter Scanning

No need to manually read RF tags one after another. Checkout is quick and easy as products scan on the counter.

Fits In Easily

The UR21-MR is compact with thin antenna, so it installs neatly in a small space. You can use it with your existing registers.

The Right Range

A communications range of about 2.6 feet is ideal for point-of-sale registers. You can adjust the range lower to prevent reading products at nearby registers. Or, you can extend the range with a second antenna (Windows).

POS Connectivity

An optional OPOS driver allows you to connect to POS registers and use them with counter scanning.

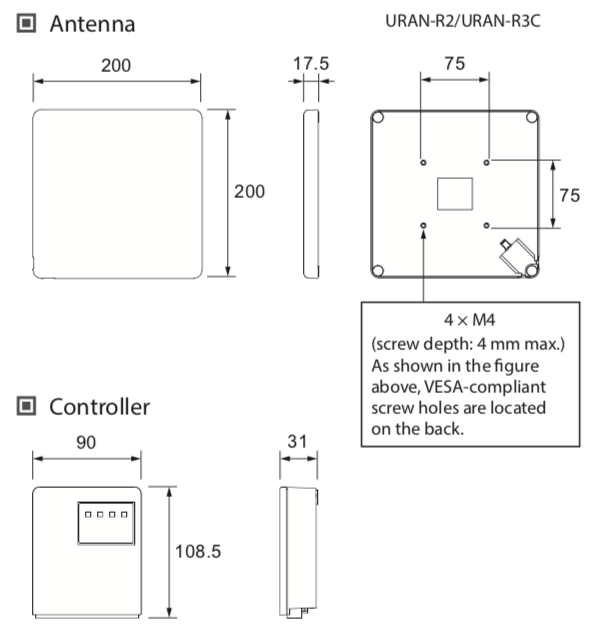

External Dimensions

Specifications

Model NumberUR21-MR-01

RFID

Supported RF TagsISO/IEC18000-63 TypeC (EPCglobal Class1 Gen2)-supported Tag
Frequency Range865.7 - 867.5 MHz
Signal Bandwidth/No. of Channels600kHz / 4 Channels
Transmission Output500mW ERP
Modulation MethodPR-ASK
Transmission Rate40kbps
Scanning Distance (2)0 - 800 mm (Avery Dennison AD-229r6)
Output Adjustment5-23 dBm

LED Indicator

Four IndicatorsPower Supply (green), COM (red), ANT1 (orange), ANT2 (orange)

Communications

InterfaceRS-232C (D-sub 9-pin), USB (mini USB B Type)

Power

Power SupplyAC adapter (100 V)
Current Consumption1300 mA max. (excluding inrush current)

Operating Environment

Temperature Range0° to 40°C

Components

ControllerOne (including a rear cover and screws for securing the rear cover)
AntennaOne (with VESA-compliant screw holes)
Antenna CableDouble-end RF connector (GT27) cable (2000mm long)
Antenna Securing ScrewsFour

Physical Characteristics

DimensionsController: 90 x 108.5 x 31mm
Antenna: 200 x 200 x 17.5mm
Weight Controller: Approx. 130g
Antenna: Approx. 360g


(1) Do not connect an antenna, a controller or a cable that is not specified by DENSO Wave.
(2) Network range may vary according to target tag. Network range is a reference value and this may vary accordingly, depending on the actual environmental conditions.

**All specifications subject to change without notice.

Optional Accessories – Sold Separately


Communication

Part #
AntennaCoaxial cable not includedURAN-R2
AntennaRFID UHF includes cableURAN-S1
CableStraight 1.5m RS-232C cableCB00RS1500/9901
CableStraight 1.5m USB cable. Type A Male - mini B MaleCB00US15004A4B1
CableStraight 2.0m USB cable. Type A Male - mini B MaleCBBA-US2000/4
Coaxial CableFor URAN-R2CBANCGT272000GT

Power and Charging

AC AdapterOutput: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico.AD2-2005/300003

Related Software


Software

Description
Part #
Active USB-COM Port DriverUSB-COM port driverFree download

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
