BHT-1100 Series

Hand-Held Android Terminal

Even blots or smears can’t stand in the way of scanning with the new scan engine ”Advanced Scan Plus” that matches the performance of laser-type scanners.

  • The unique CCD method “Advanced Scan” has been evolved, achieving approximately three times the speed of laser-type scanners.
  • Stress-less quick scanning of continuous barcodes during inspection leads to reduced operation time.

Advanced Features

Maximum scanning depth from up to 25 feet or more away

  • From scanning at close to far distances, can scan up to 25 feet or more away.(1)
  • From floor to ceiling, easily scan without having to change positions.

Strong against blots or smears

  • Quick and accurate scanning even when barcodes are partially not visible or dirty by reading the barcode in 2-dimensions rather than as lines.
  • In addition to barcodes in poor condition, high density and wide barcodes can also be read.

Where can BHT-1100 be useful? Picking in the backyard.

  • Flash ROM capacity significantly increased to 2GB. Work without worrying about memory.
  • Also as external memory, the high-speed reading MicroSDHC is supported, allowing smooth data transfer within the BHT-1100 and from external data.

1 terminal, 2 roles. Camera attached

  • Large elastic is attached to the tip of the barcode scanner to prevent damage upon large falls, securing high durability.
  • Durable keypad where the key tops or letters don’t come off.
  • Proven durability, clearing drop resistance tests of 60 times at 1.2m in height. Allows for long use with peace of mind.

DENSO Group support, even abroad

  • The global DENSO Group network allows for full local maintenance and support, both domestically or abroad.
  • Quick response in case repair is needed.

Design

Strictly strives for easy grip and operational convenience, always supporting repetitive tasks.

  • Irregular surface on the back to ensure a sense of stability when held.
  • Further increased stability with the hand belt.
  • Stable operation with both the keys and stylus.

Dimensions

BHT-1100 dimensions

Specifications

Model NumberBHT-1171BWB-CEBHT-1170BWB-CE
Model w/ CameraModel w/o Camera

System

Operating SystemWindows Embedded CE6.0 R3
CPU32bit RISC 800MHz
RAM512MB
Flash ROM2.0GB
Card SlotmicroSDHC x 1

Display

Resolution (1)3.5 in. HVGA (320 x 480 px)
BacklightLCD

Scanner

Camera1.3 megapixels
MethodAdvanced Scan Plus (CCD)
Readable 1D BarcodesEAN-13/8 (JAN-13/-8) UPC-A/-E, UPC/EAN (With add-on), Interleaved 2 of 5, Standard 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), GS1 DataBar (RSS)
Minimum Resolution 1D Barcodes0.125mm
Scanning Distance640mm (resolution 0.33mm)
1300mm (resolution 1.0mm)
Reading Reference Position100mm110mm
Scan ConfirmationLED Light (blue, green and red), Sound and Vibration
Keypad21 keys (including power key) + cross cursor key + 3 trigger Keys

Wireless LAN Communication

StandardIEEE802.11b/g/n Compliant
Frequency2.4GHz
Communication Distance (2)Indoor: 150m, Outdoor: 300m
Transmission Speed (2)IEEE802.11b: 11/5.5/2/1Mbps, IEEE802.11g: 54/48/36/24/18/12/9/6Mbps, IEEE802.11n: 65/58.5/52/39/26/19.5/13/6.5Mbps
Access MethodInfrastructure Mode
SecurityWEP40, 128, WPA-PSK (TKIP, AES), WPA2-PSK (TKIP, AES), WPA-1x (TKIP, AES/EAP-TLS, PEAP)WPA2-1x (TKIP, AES/EAP-TLS, PEAP), 802.1x (EAP-TLS, PEAP)

Bluetooth Communication

Bluetooth Ver2.0 + EDR Class 2

Cradle I/F

RS-232C / USB client

Power

Main BatteryLithium-ion Battery
Operating Time (3)Approx. 17 hours (standard battery) / Approx. 25 hours (large capacity battery)(3)

Operating Environment

IP RatingIP54
Temperature Range (4)-20 to 50°C
Drop Test (5)1.5m drop on concrete floor, 10 times each on all 6 sides (total 60 times)

Physical Characteristics

WeightApprox. 380gApprox. 375g

(1) Properly operating pixel rate is 99.99%.
(2) The communication distance shown is a reference value. It may vary depending on the actual environmental conditions.
The transmission speed shown is a logical variable only, not the guaranteed value.
(3) At the ratio of scanning: wireless transmission: screen transition:stand-by=1:1:1:20, wireless stand-by (power save on), and LCD backlight low.
Featured values are for reference at room temperature, and actual operating hours may vary according to the usage environment.
(4) Zero to 40°C when charging.
(5) Result obtained in a test under regular temperature is shown and not meant as a guarantee.
(6) Zero to 40°C when batteries are being recharged.
(7) Result obtained in a test under regular temperature is shown and not meant as a guarantee.
**All specifications subject to change without notice.


Optional Accessories – Sold Separately

BHT-1100 Series Options list

Communication

Cradles performing data communications between BHT and higher rank units.

  • CU-1133
    • USB/RS-232C communication
    • Main unit charging
    • Reserve battery charging
  • CU-1111
    • Ethernet communication
    • Main unit charging
    • Reserve battery charging

Charger

A lineup of various BHT main unit charging type and backup cartridge charging type devices.

  • CH-110
    • Up to 4 BT-20LB (or BT-110LA or BT-110L) unit can be charged.

Power Supply

Batteries for BHT-1110

  • BT-110LA
    • Lithium-ion battery (standard battery only)
  • BT-110LA-C
    • Lithium-ion battery (standard battery + battery cover)
  • BT-110L
    • Lithium-ion battery (high-capacity battery only)
  • BT-110L-C
    • Lithium-ion battery (high-capacity battery + battery cover)

Soft case and others

  • SCBHT-1100
    • Soft case
  • WHBHT-1100/1200
    • Waist-pack case

Accessories

  • Hand-belt
  • Stylus pen
  • Operation guide

*Battery and battery cover are not supplied with the product

Compatible with various development tools

Microsoft Visual Studio 2008

  • Microsoft Visual C++ (1)
  • Microsoft Visual Basic (1)(2)
  • Microsoft Visual C# (1)(2)

Microsoft Visual Studio 2005

  • Microsoft Visual C++ (1)
  • Microsoft Visual Basic (1)(2)
  • Microsoft Visual C# (1)(2)
  1. Development of applications using BHT specific features requires the library/class library included in the BHT specific Software Development Kit (SDK), which can be downloaded for free at our website.
  2. The BHT specific class library is compatible with the following versions:- Microsoft .NET Compact Framework 2.0/3.5

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.

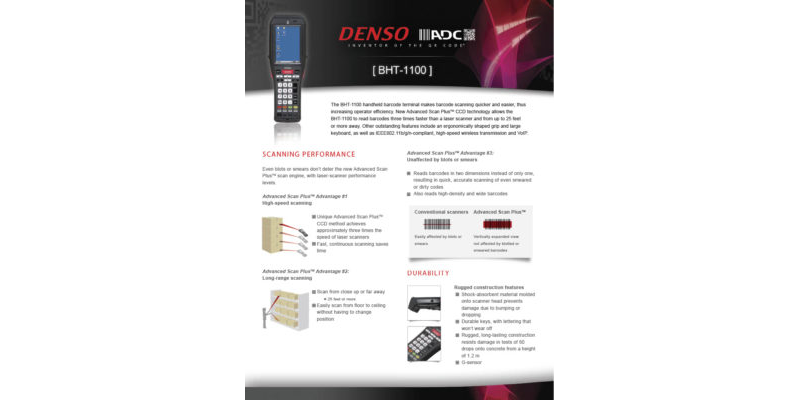

Downloads
