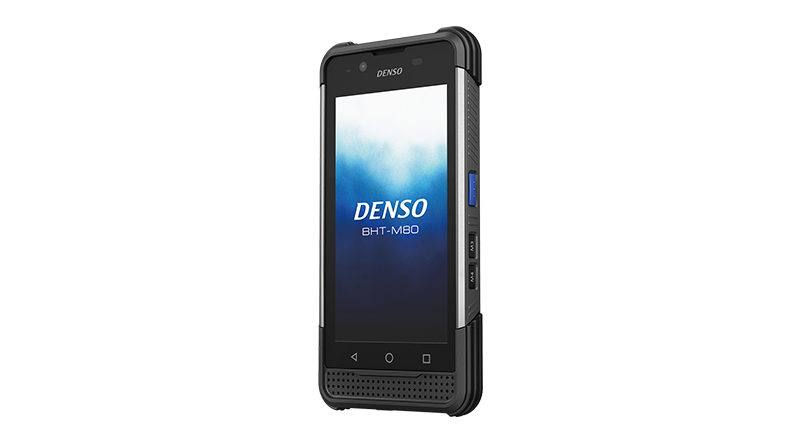

BHT-M80 Android Terminal

BHT-M80

A handheld terminal that combines mighty power, multi-functionality, and intuitive ease-of-use. It’s ideal for applications in logistics, manufacturing, retail and healthcare. And it comes with software that even non-coders will find useful for streamlining their unique workflows.

New Scanning Efficiency

Android BHT-M Series

Range

Scan worry-free from distances of 2 inches to 5 feet.

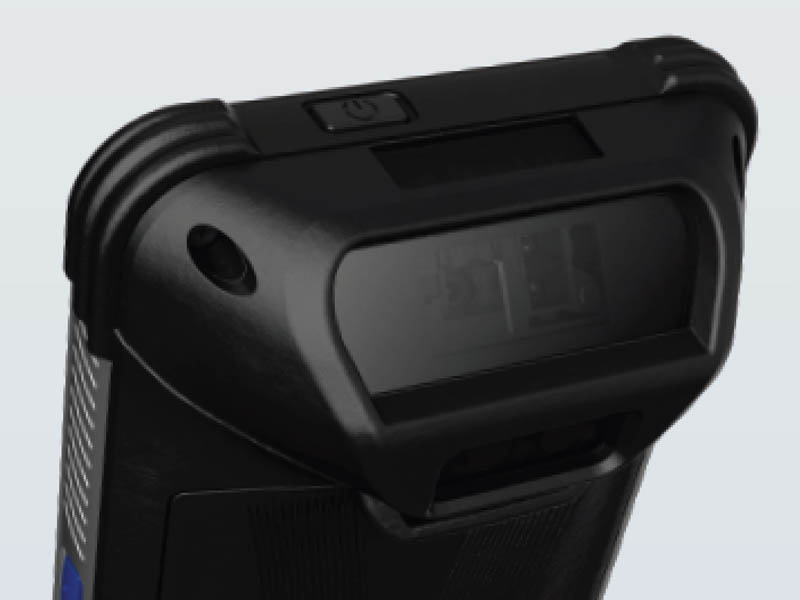

Speed

Speed

With advanced decode engine, high-density sensor, and top-performing CPU, the BHT M80 handles up to 30 scans per second. Slash inventory time with “trace” scanning—reading multiple codes in a fluid motion.

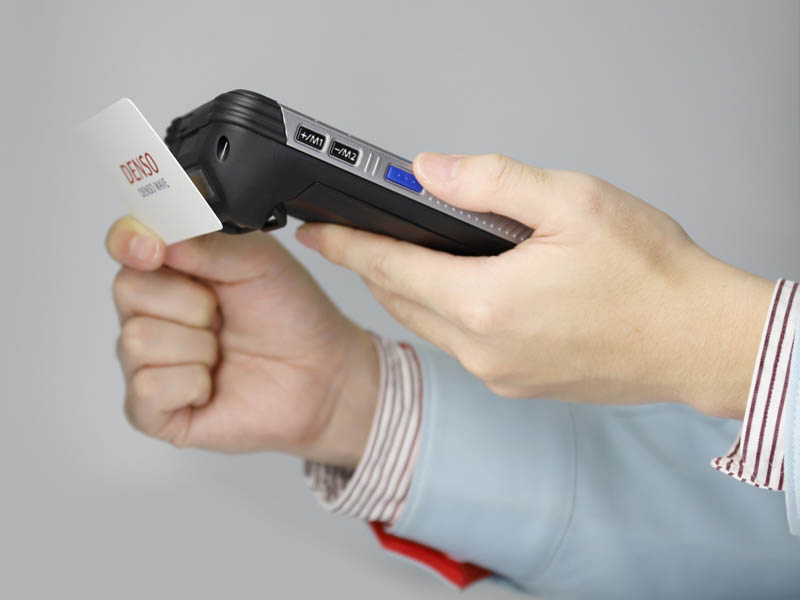

Comfortable grip

Comfort

Experience handheld ease, even when codes are overhead or below, with an ergonomically positioned sensor, large display, and modest heft (12 to 14 oz depending on choice of battery).

Accuracy

Accuracy

Codes that were previously illegible with other readers are now readable with advanced OCR (optical character recognition). Now you can:

  • Read codes through glass, wrapping film, tape, and reflective and/or crinkled surfaces.
  • Read codes that are stained, smudged, blotted, dirty, deformed, or poorly printed.
  • Advanced optical character recognition (OCR) even reads print that is blurred, stained, or distorted.

Made for Users to Love

Android BHT-M Series

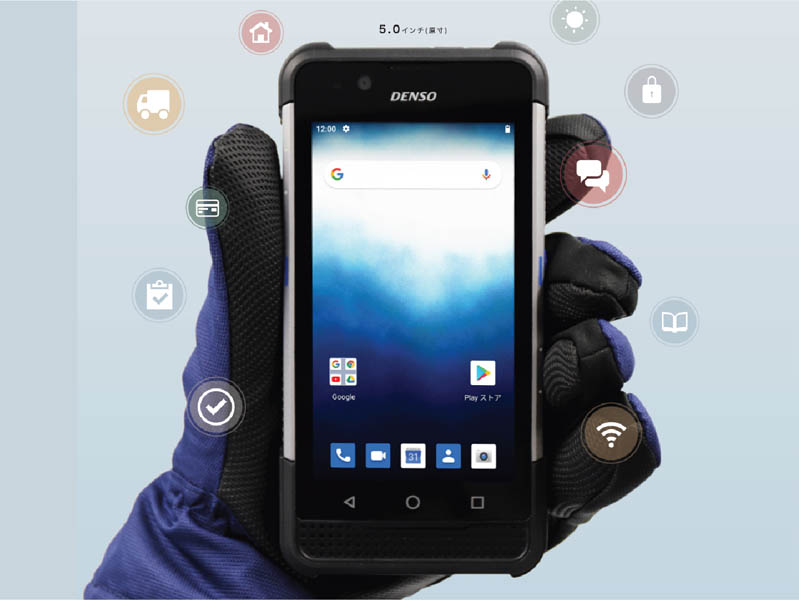

Android 10 Operation

Users of Android phones and tablets find operation of the BHT M80 intuitive, getting up to speed and productive quickly.

Android BHT-M Series

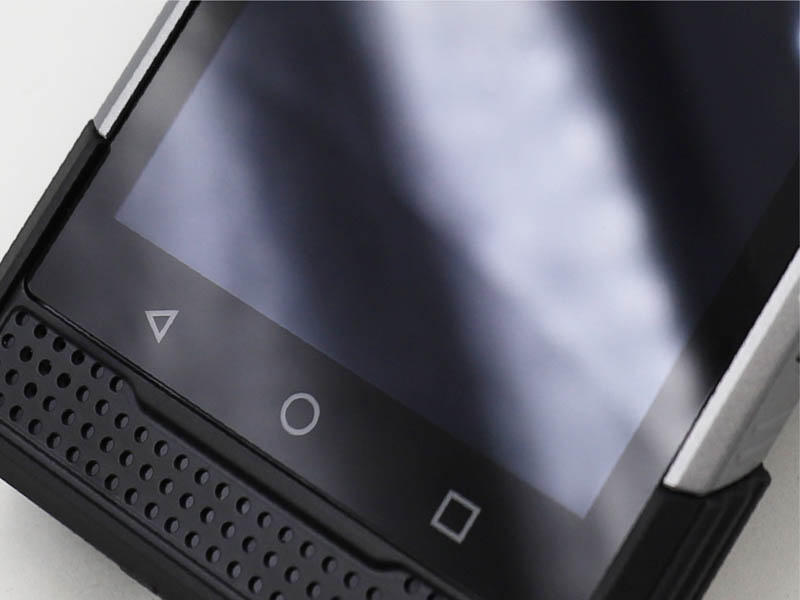

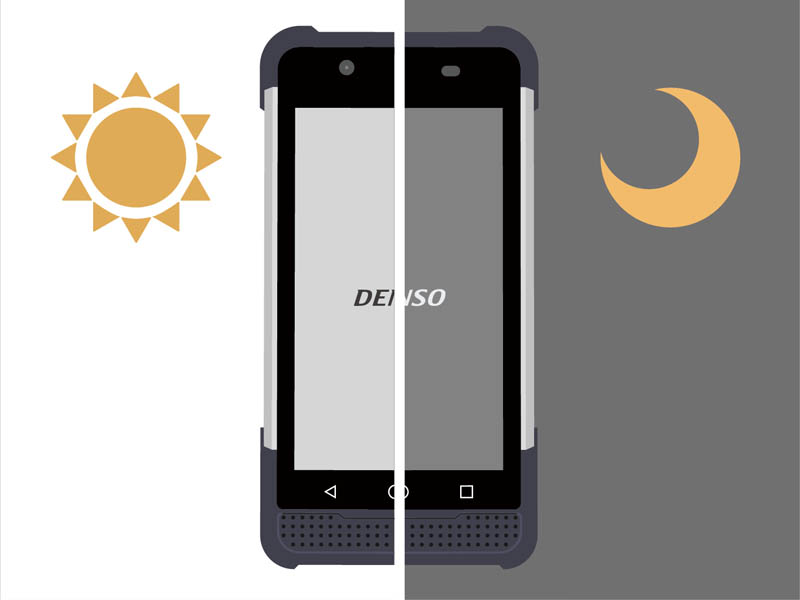

High Visibility

The 5-in. high-resolution display affords exceptional readability — even in full sunlight.

  • Automatically adjusts brightness for optimum visibility in any ambient light
  • Trouble-free touch operation — even with gloved hands and with water on the screen.
BHT-M80

Hand-Friendly

Ergonomic design avoids fatigue with extended use. Angled scan head is optimal for reading codes overhead and below the knees.

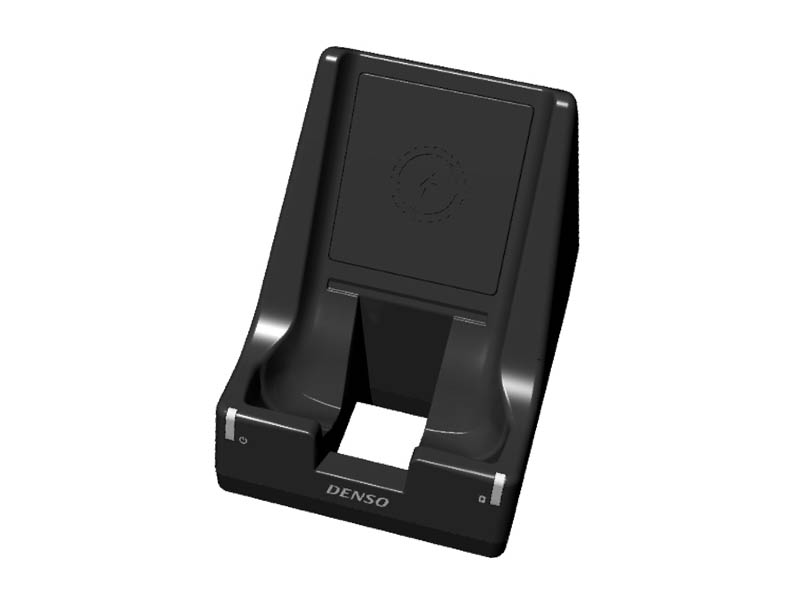

Charging Port

Convenient Recharging

Onscreen Battery Monitor lets you know when it’s time to replace the battery. Recharge:

  • Direct via USB-C Cable
  • Via Qualcomm® Quick Charge™ Adapter
  • Contactless (with optional 5800mAh battery and cradle)

Dependable Durability

Android BHT-M Series

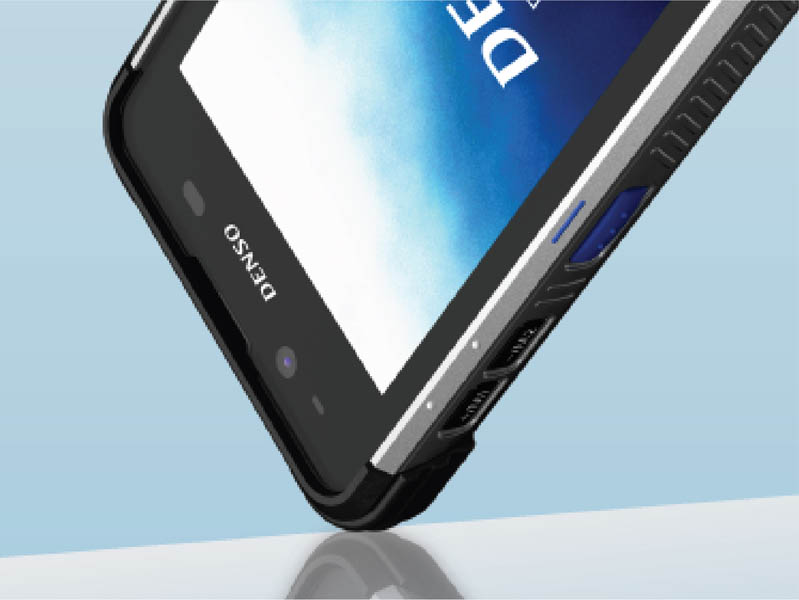

Drop Resistant

Strong magnesium frame equipped with elastomer bumpers to absorbs shocks to resist impact damage. Tested in multiple drops from typical working heights.

  • 2,000 drops at 1.0 meter (3 ft. 3 in.)
  • 60 drops at 1.5 meters (4 ft. 11 in.)
  • 6 drops at 2.5 meters (8 ft. 2 in.)
Android BHT-M Series

Defies Harsh Environments

Compliance with IP67 specs assures you the BHT-M80 is impervious to dust and sand and can sail through tasks in wet or damp conditions.

Tempered Glass Screen

A Clear Choice

The tempered glass screen (DragonPro®) leads the industry with resistance to scratching, ensuring easy-on-the-eyes clarity for long-term use.

The Mighty Engine That Could

Processing Power

Processing Power

With a Qualcomm® SMD 660 CPU (64-bit Octa-Core 2.2 GHz), the BHT-M80 gives you the power to handle multiple apps and data flows simultaneously—with no compromise in performance. For example, conduct a voice call while you receive or upload scanned data, hiccup-free.

Android BHT-M Series

Multifaceted Connectivity

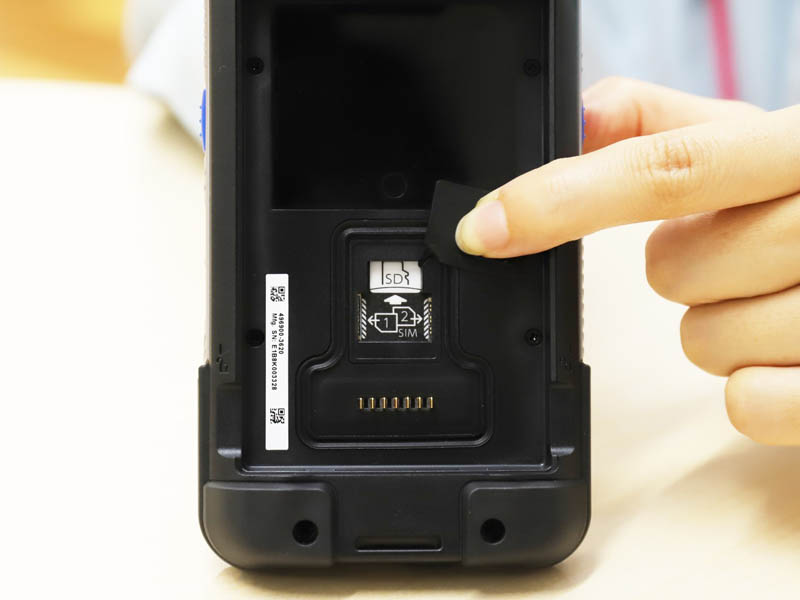

In addition to 4G LTE speed, the BHT-M80 supports Wi-Fi, Bluetooth, and VoLTE with Google Mobile Services. With two SIM slots, it accommodates a bevy of optional apps to make communication as swift and easy as you’ve always hoped it would be.

Android BHT-M Series

GPS+ Enabled

Precise, responsive mapping and routing are at your fingertips. The BHT-M80 is a boon for terminal functions in the field, e.g., work of delivery fleets.

NFC and RFID Capability

Use the BHT-M80 to quickly read RFID tags and capture ID information via an integral NFC antenna.

Simple Customization

A host of applications developed by DENSO partners lets you expand your capabilities for security, logistics, face authentication, inspection, root navigation, and transceiver functions.

Remote Operation

Manage individual terminals, trouble-shoot, and perform updates swiftly — all from the convenience of your PC.

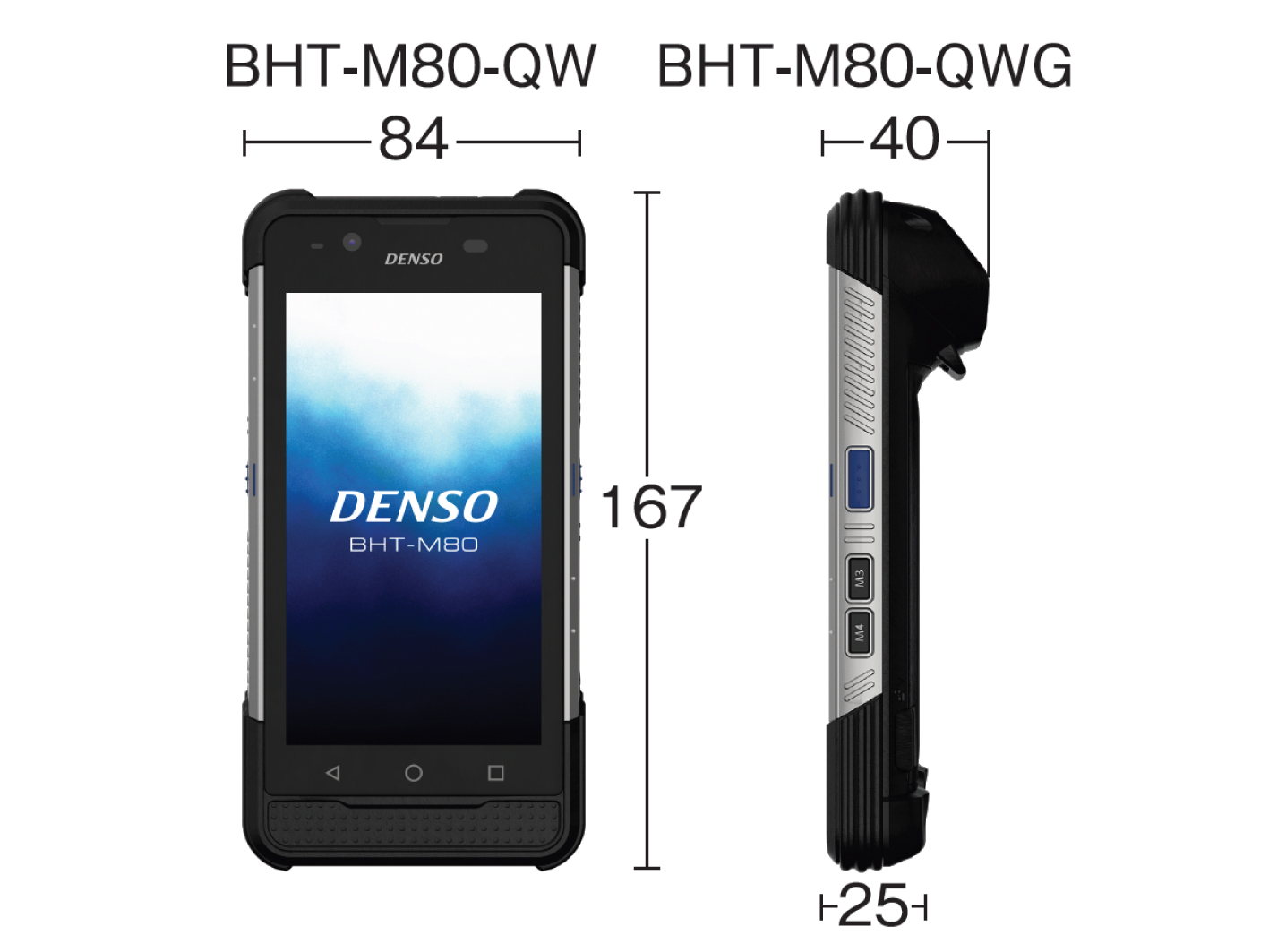

Dimensions

BHT-M80 Dimensions

Specifications

Model NumberBHT-M80-QWBHT-M80-QWG
Wireless LANWireless LAN + Wireless WAN

System

Operating SystemAndroid™ 10
CPUQualcomm® SDM660 64 bit 2.20 GHz (Octa-Core)
RAM4GB
Flash Memory64GB
Card Slot MemorymicroSD (SDHC and SDXC (up to 128 GB)) SDHC Speed class 4 support
Card Slot SIMDual Nano SIM DSDV (4Gx4G)

Display

Resolution (1)5.0 in. High Def (720 x 1,280 px)
DisplayColor LCD
BacklightWhite LED
TouchscreenDragontrail® PRO

Scanner

MethodImage Scanner
Readable 2D CodesQR code®, Micro QR code, SQRC®, PDF417, Micro PDF417, Maxi code, Data Matrix (ECC200), and GS1 Composite
Readable 1D BarcodesEAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), and Interleaved 2 of 5 (ITF), Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), and Standard 2 of 5 (STF), GS1 DataBar (RSS)
OCR (2)Supported
Minimum Resolution 2D Codes0.127mm
Minimum Resolution 1D Barcodes0.076mm
MarkerCross Guide
Scanning ConfirmationLED Light (blue), Sound and Vibration
Keypad (including power key)5 keys + 2 trigger keys
CameraFront - 5MP autofocus, Rear - 13MP autofocus

Network

Wireless LAN Compatible StandardsIEEE802.11a/b/g/n/ac and MU-MIMO 2x2
Wireless LAN Frequency Band5 GHz-band (W52, W53, W56 and W58)
2.4 GHz-band (1 to 13 channels)
*USA, Canada, Taiwan (1 to 11 channels)
Wireless LAN SecurityEncryption: OPEN, Enhanced Open, WEP(40/128), TKIP and AES
WPA authentication: WPA and WPA2 and WPA3
User authentication: PSK, EAP-TLS, and PEAP
Wireless WAN Supported StandardsGSM/W-CDMA/LTE and VoLTE
FDD-LTE (4G) - Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28
W-CDMA/UMTS/HSPA/HSPA+ (3G) - Bands 1, 2, 5, 6, 8, 19
GSM/GPRS/EDGE (2G) - Bands 850, 900, 1800, 1900MHz
GPSA-GPS/GLONASS/QZSS/BeiDou/Galileo
Bluetooth®Bluetooth 5.1+EDR/LE

Compatible Authentication Profile:
RFCOMM/A2DP/AVCTP/ACDTP/GVDP/AVRCP/DUN/DI/HFP/
HID/HSP/IOP/MAP/OPP/BNEP/PAN/PBAP/SAP/SPP
USBUSB 2.0 (Type-C)
NFC (3)ISO/IEC14443A&B, FeliCa®, ISO/IEC15693 (RFID)

Power

Main BatteryLithium-ion Battery
Wireless ChargingSupported (excludes battery and charger)
USB ChargingQualcomm® Quick Charge 3.0
Operating Time BT1S 2900 mAh Battery14 hours (4)
Operating Time BT1 4020 mAh Battery20 hours (4)
Operating Time BT1L 5800 mAh Battery29 hours (4)

Operating Environment

IP Rating (5)IP65 and IP67
Temperature Range (6)-20° to 50°C
Humidity Range20 to 80%RH (non-condensing and non-icing)
Drop Test (5)60 or more drops from 1.5m and 2.5m

Physical Characteristics

Weight (including battery)Approx. 345g (BT1S), 365g (BT1) and 395g (BT1L)
Other Features (7)Headset port for USB-C Cable, Speaker, and Sensors (G-sensor, gyro sensor, proximity sensor, light intensity sensor, and geomagnetic sensor)


(1) Properly operating pixel rate is 99.99%
(2) A license is required.
(3) Before using the NFC function, perform test reading sufficiently using the target NFC card.
(4) The operating time is a reference value at a room temperature and may differ depending on the operating conditions.
Measurement based on the JEITA HT Standard Operation Mode G, and may change depending on the operating environment and system settings.
(5) These are tested values and not meant to be guaranteed results.
(6) Zero to 40°C when batteries are charging.
(7) A headset or headphone can be connected through the USB Type-C cable. A USB Type-C-to-audio jack (3.5 mm)
conversion cable is optional.

Android, Bluetooth, DragonTrail Pro, FeliCa, Qualcomm are trademarks of their respective companies.

**All specifications subject to change without notice.

Optional Accessories – Sold Separately


Batteries and Accessories

Part #
Lithium-ion Battery2900mAhBT1S
LIthium-ion Battery for Wireless Charging2900mAhBT1S-W
Lithium-ion Battery4020mAhBT1
Lithium-ion Battery5800mAhBT1L

Charging Station

Wireless ChargerAdapter sold separatelyCH-M80W
Four-slot Unit ChargerCharge up to four terminals at the same time. AC adapter not included.CH-M80-4
Four-slot External Battery ChargerCharge up to four batteries at the same time. AC adapter not included.CH-BT1-4
AC AdapterQuick Charge ™ 3.0 (Requires USB-C conversion cable to charge the BHT terminal, sold separately.)AD8

Communication Station

USB Type ChargerWith spare battery charger. Adapter sold separately.CU-M80U
USB Type ChargerWithout spare battery charger. Adapter sold separately.CU-M80UQ
LAN ChargerWith spare battery charger. Adapter sold separately.CU-M80L
AC AdapterAD3
Cable1.5m USB-C to USB-A conversion cableCB00-US1500/4A-4C
CableUSB-C to audio jack conversion cable (for use with earphones and other devices)CB00-US100/3-4C

Other Accessories

Hand StrapHBBHT-M80
Stylus PenPNBHT-1700

Related Software


Software

Description
Part #
SDK AndroidSoftware Development Kit (SDK) for Android 10Free download
BHTLinkDevelopment tool or transmitting and receiving files between Android BHT and a PC
BHT BoosterApplication development tool for Android
BHT DMSDevice Management System
BHT Security PackageApp for visualzing device control, firewall and security incidents
Application Launcher
Battery Monitor
BHT Browser
TouchtriggerScan button that can be repositioned on the screen

All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.

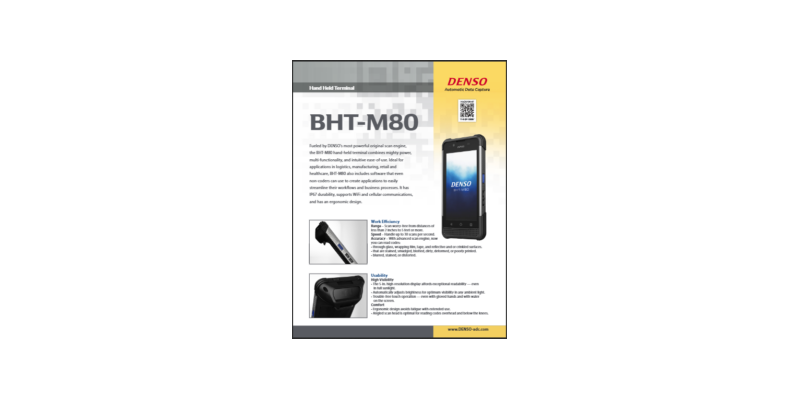

Downloads
